Century Hose & Couplings Ltd | SKU:
MK1719SS

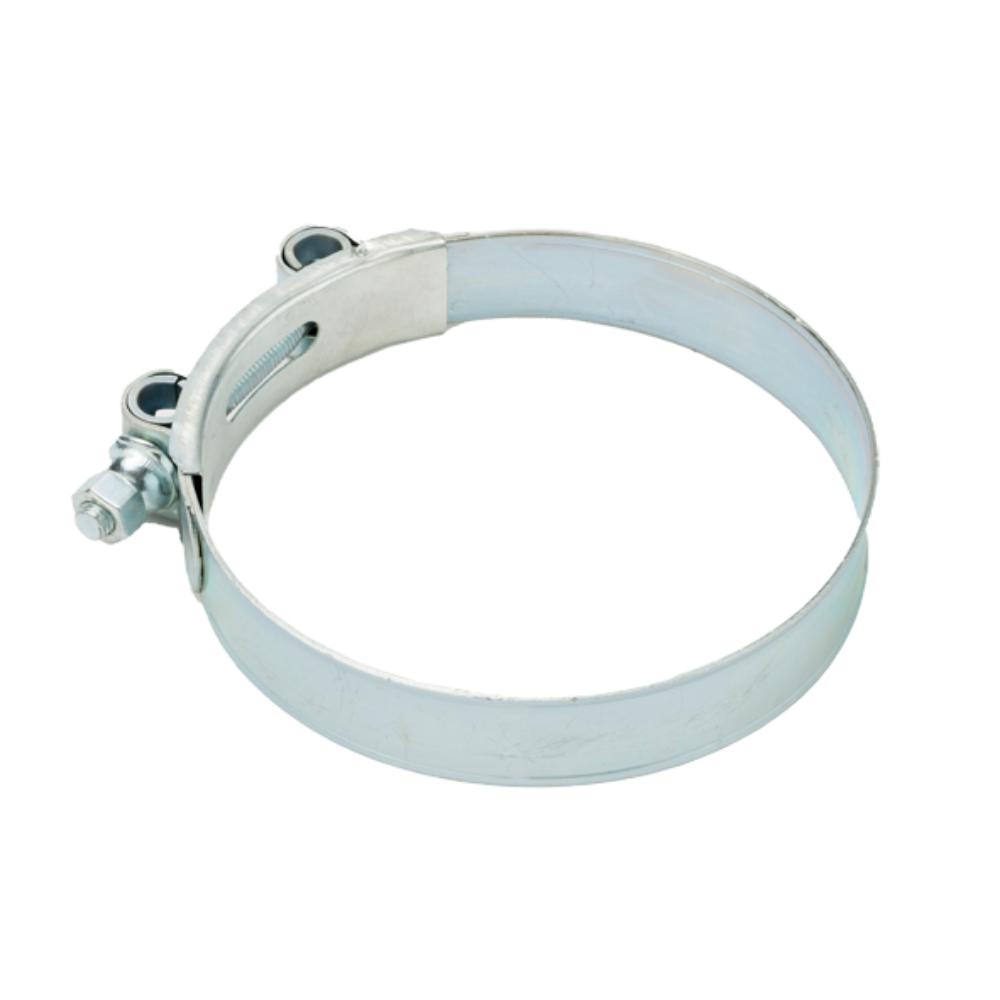

Superex Heavy Duty Steel Bolt Clamp W4 - 304 Stainless Steel
Superex Heavy Duty Steel Bolt Clamp W4 - 304 Stainless Steel - 17mm-19mm is backordered and will ship as soon as it is back in stock.
Make an enquiry
Make an enquiry
Want to make an enquiry on this product?
Please contact our sales team by telephone 01772 653530 or email sales@centuryhoseandcouplings.co.uk
Superex Heavy Duty Steel Bolt Clamp W4 - 304 Stainless Steel
- Ideal for securing hose couplings into PVC and rubber hoses in the workshop or on-site.
- W4 specification means min 240 hours corrosion resistance in salt spray testing.
- Ideal for marine, agricultural, chemical and corrosive environments.
- Smooth underside and rolled band edges designed to prevent damage to the hose cover when tightened.
- High strength 8.8 grade T-bolt ensues optimum torque when tightened.
- Super clamp features 3 welding points for increased strength and security.
- Recommended torque settings provided.
| Dia. Size (mm) | Band Width (mm) | Band Thickness (mm) | Bolt Size | Torque Setting (Nm) |
| 17-28 | 18 | 0.6 | M5 | 4.5 |
| 29-43 | 20 | 0.8 | M6 | 8 |
| 44-67 | 22 | 0.8 | M6 | 16 |
| 68-130 | 24 | 1 | M8 | 25 |
| 131-252 | 26 | 1 | M10 | 50 |
